Radius PPG® Tetherless Pulse Oximetry

Radius PPG® Tetherless Pulse Oximetry



Featuring Masimo SET® Measure-through Motion and Low Perfusion™ Technology for Continuous Monitoring on the Move

Radius PPG provides industry-leading Masimo SET® pulse oximetry without a cabled connection to a monitor, allowing all patients, ranging from neonatal, infant, pediatric, and adult to move wirelessly and comfortably while still being continuously and reliably monitored. Wireless connection to a host device is simple to establish and each Radius PPG can easily pair with multiple devices (maintaining connection to any one device at a time), simplifying transfers between care areas. Automated by Masimo’s connectivity solutions, patient data can be used for remote clinician notification of changes in patient condition and automatically transferred to the hospital EMR.

Available for all patients, including adults, children, infants, and neonates.

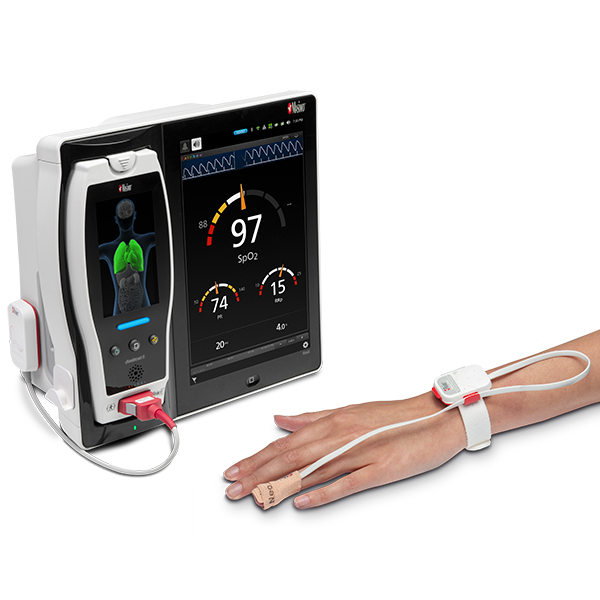

Masimo - Radius PPG Application Image
Masimo - Radius PPG Detail IMage

Masimo SET® Measurements

Masimo SET® Measurements


Pi

Perfusion Index

PVi®

Pleth Variability Index

RRp®

Respiration Rate from the Pleth

Improved patient comfort and convenience


  • Facilitates untethered movement around the hospital room
  • Allows parents and caregivers to hold infants unencumbered by cables — without the risk of cables tugging on fragile skin

Enhanced clinician workflow and efficiency


  • Reduces the burden of cable management
  • Eliminates the need to disconnect and reconnect each time patient gets out of bed
parent holding baby with a Radius PPG system applied to baby's thigh

Tetherless Radius PPG Pulse Oximetry System

Tetherless Radius PPG Pulse Oximetry System

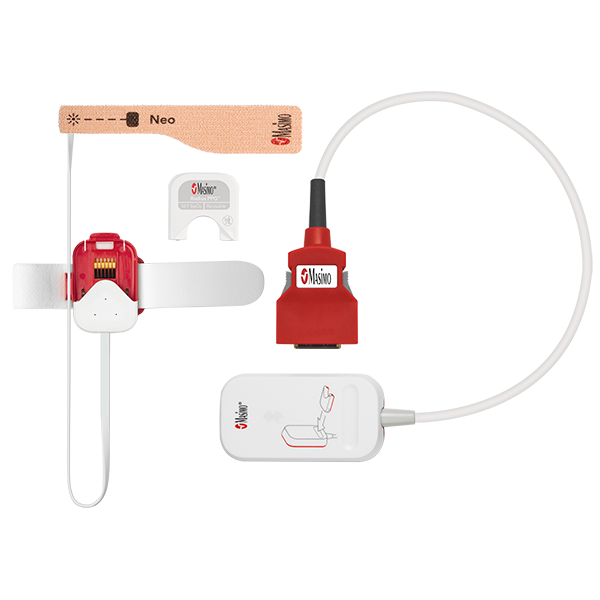

The Radius PPG (Photoplethysmography) system is comprised of the following components:

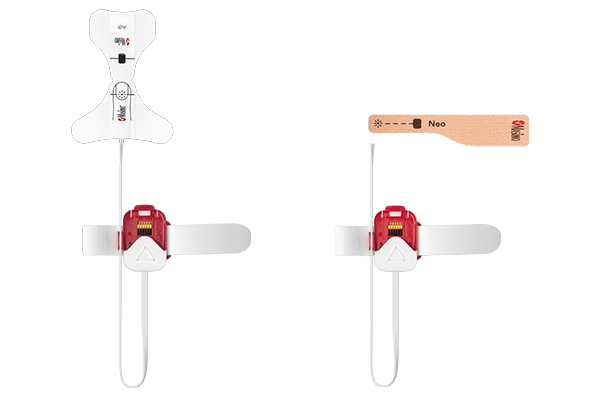

Radius PPG Adhesive Adult and Neo sensor


Adhesive Sensor

Single-patient-use sensors available for all patient populations

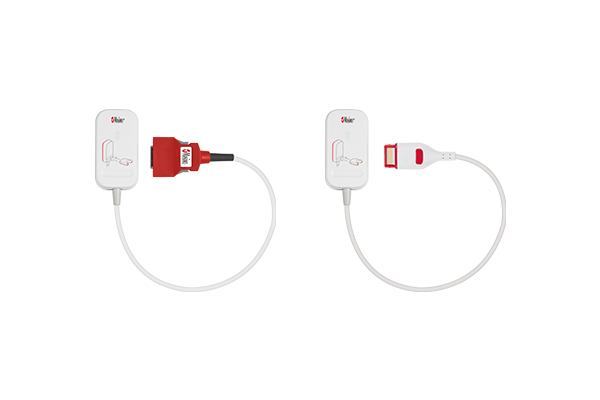

Radius PPG Wireless Receiver M20 and MD20


Bluetooth Receiver

Reusable wireless receiver selected based on host monitor connection

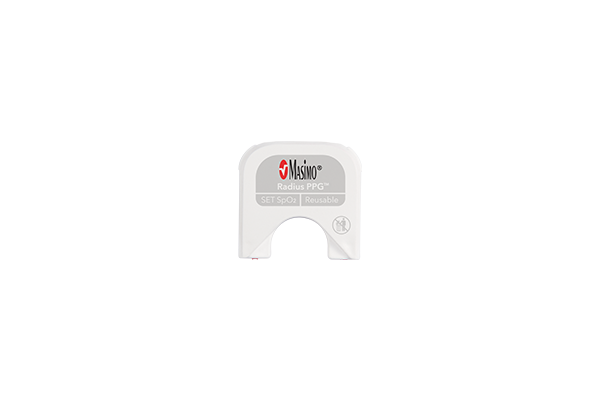

Radius PPG Reusable Chip


Chip

Reusable chip for data transmission from sensor to host monitor

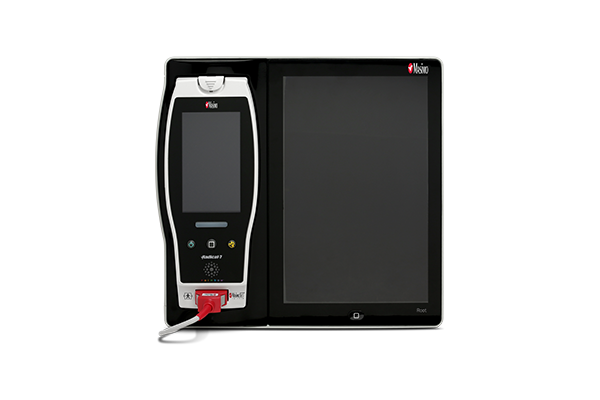

Masimo Root


Device (sold separately)

Host device to display patient data

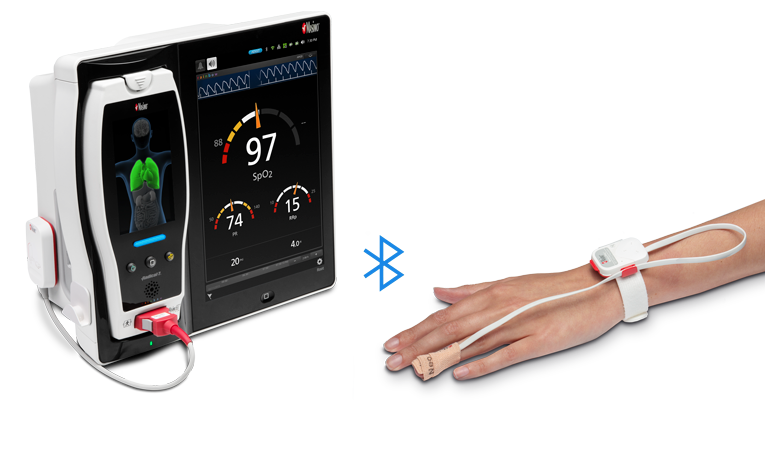

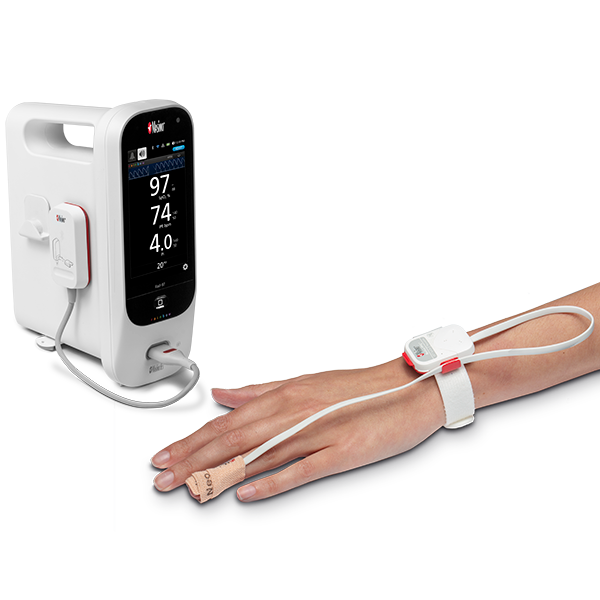

Masimo Root next to a hand with the Masimo Radius PPG sensor on the wrist, and in between is a wifi symbol

The chip is inserted into the adhesive sensor and communicates with the Bluetooth receiver. The Bluetooth receiver is attached to the host device, providing wireless, real-time patient data.

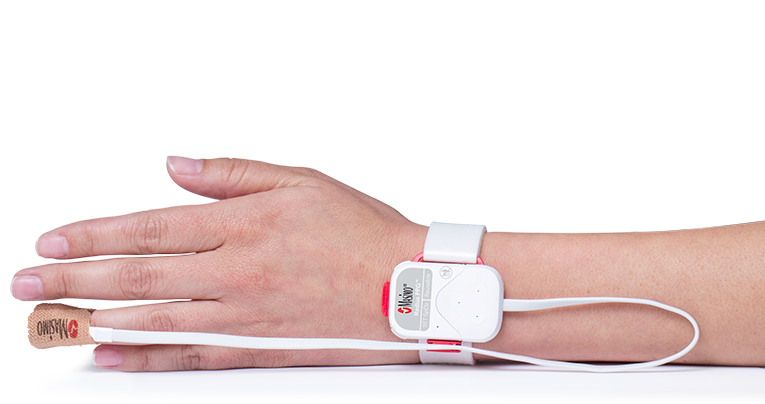

Lightweight, Tetherless Sensor

Gives patients the freedom and comfort to move while being securely and continuously monitored

Up to 100-foot Bluetooth Range from Host Monitor

Allows clinicians to stay connected to their patients remotely with up to 96 hours of data synchronization when a patient comes back into Bluetooth range

4-day Battery Life

Eco-friendly batteries allow the sensor to be disposed of as non-hazardous waste and last for up to 4 days of continuous use

Radius PPG Solutions

Radius PPG Solutions



References:

*Masimo SET® Measure-through Motion technology includes SpO2 and PR.
