Masimo's breakthrough noninvasive monitoring technologies can be integrated into a range of multi-parameter and multi-use monitoring devices with our family of MX and MSX series circuit boards.

MX series boards—when used with the applicable Masimo sensors—are capable of providing the full suite of Masimo rainbow measurements, including Total Hemoglobin (SpHb^®), Oxygen Content (SpOC™), Carboxyhemoglobin (SpCO^®), Methemoglobin (SpMet^®), Pleth Variability Index (PVi^®), Respiration Rate from the Pleth (RRp^®), in addition to Masimo SET^® Measure-through Motion and Low Perfusion™ pulse oximetry measurements SpO₂, Pulse Rate, and Perfusion Index.

The MSX-2040 board uses about a third of the power and is only half the physical size of previously available Signal Extraction Technology^® pulse oximetry solutions—while providing the same proven Measure-through Motion and Low Perfusion capabilities.

The MSX-2040 board is also available as an external “board-in-cable” solution embedded within a completely self-contained patient cable* (uSpO₂), providing Masimo SET pulse oximetry measurements and Pleth Variability Index (PVi^®)  externally for existing devices not presently compatible with integrated pulse oximetry solutions.

Now available SedLine Brain Function Monitoring and O3 Regional Oximeter with Masimo Open Connect (MOC-9) Measurement Module

*This cable is also available unterminated.

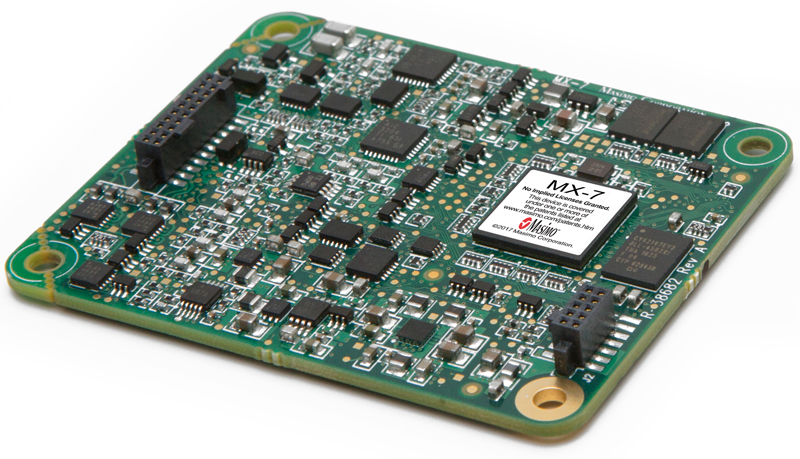

MX-7

MX-7

Masimo rainbow SET™ OEM Board

Dimensions and specifications for the MX-7 board are as follows:

• Size: 2 inches by 2.5 inches
• Board thickness: 0.062 inches
• Mounting hole diameter: 0.125 inches

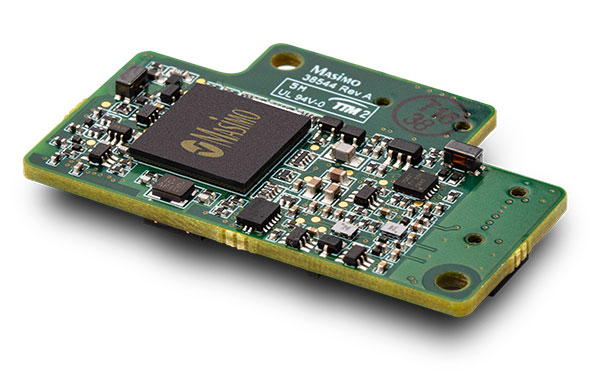

MSX-2040D

MSX-2040D

Masimo SET^® OEM Board

Dimensions and specifications for the MSX-2040D are as follows:

• Size: 1.14 inches by 1.80 inches
• Board thickness: 0.062 inches
• Mounting hole diameter: 0.110 inches

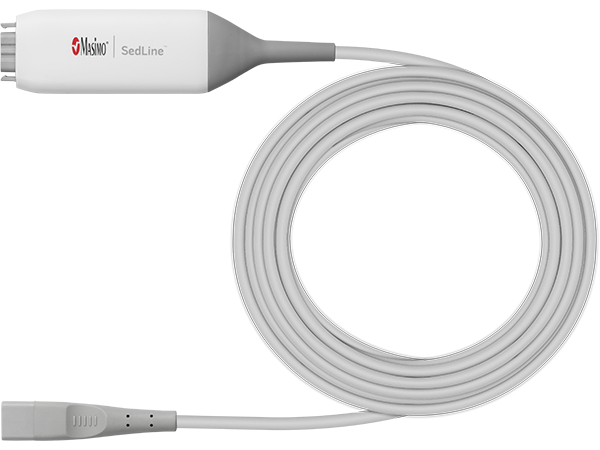

SedLine Module

SedLine Module

SedLine Brain Function Monitoring with Masimo Open Connect (MOC-9) Measurement Module

Typical Module Dimensions

• 1.3 in (3.3 cm) Width
• 4.0 in (10.2 cm) Length
• 0.8 in (2.0 cm) Thickness
• 12 ft (3.6 m) Cable Length

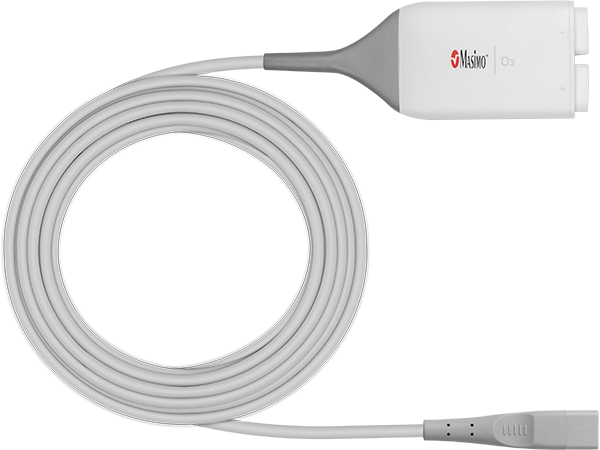

O3 Module

O3 Module

O3 Regional Oximeter with Masimo Open Connect (MOC-9) Measurement Module

Typical Module Dimensions

• 1.8 in (4.60 cm) Width
• 4.0 in (10.2 cm) Length
• 1.25 in (3.2 cm) Thickness
• 12 ft (3.6 m) Cable Length

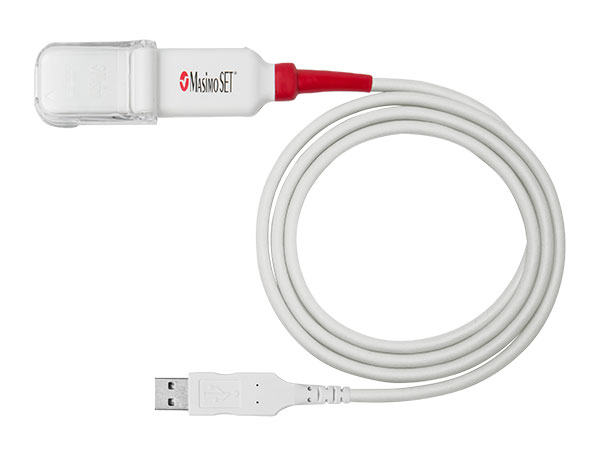

uSpO2 USB Cable

uSpO2 USB Cable

Masimo SET^® Pulse Oximetry Cable

Dimensions and specifications for the uSpO2 USB cable are as follows:

• Size: 1.20 inches by 3.60 inches
• Thickness: 0.90 inches
