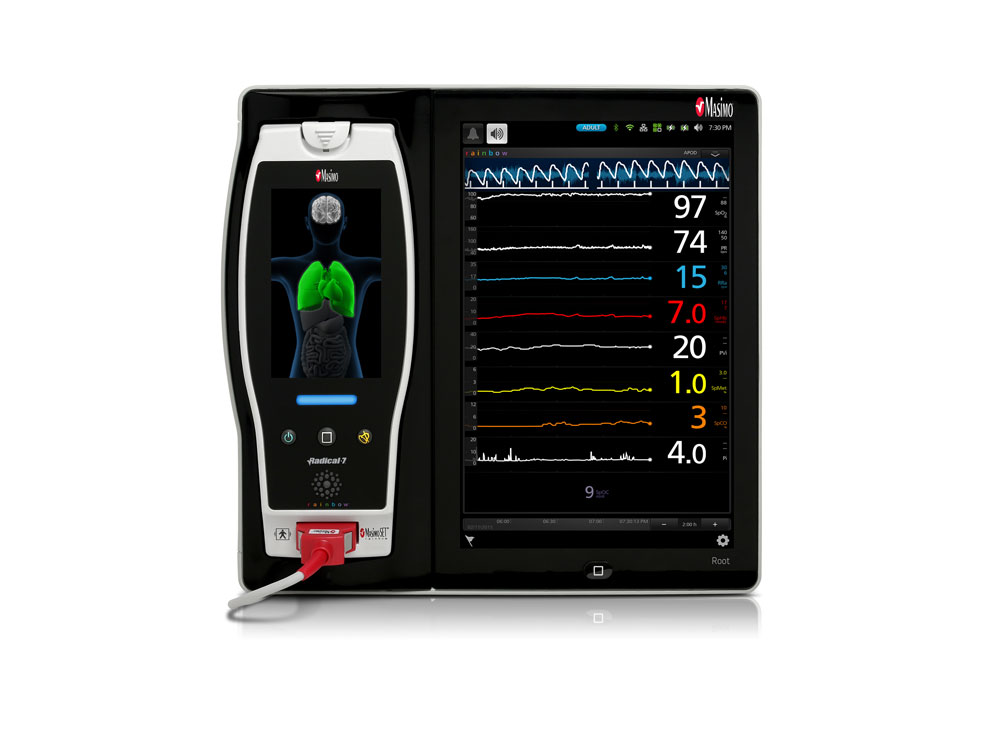

Masimo - Root_digital_8-up_US_1.20.17

Root with Radical-7

Breakthrough Measurements with Instantly Adaptable Functionality

When connected to a Radical-7 Pulse CO-Oximeter®, Root provides continuous monitoring using industry-leading Masimo SET® Measure-through Motion and Low Perfusion™ pulse oximetry. In addition, the platform can be upgraded to provide Masimo rainbow SET™ technology, allowing clinicians to noninvasively monitor multiple additional physiologic parameters.


Discover other Masimo devices and sensors that are compatible with this product.

Advanced, Upgradeable Monitoring Technologies


Masimo SET® Pulse Oximetry




Pulse Rate


Perfusion Index


Pleth Variability Index

Instantly Interpretable, Customizable Display

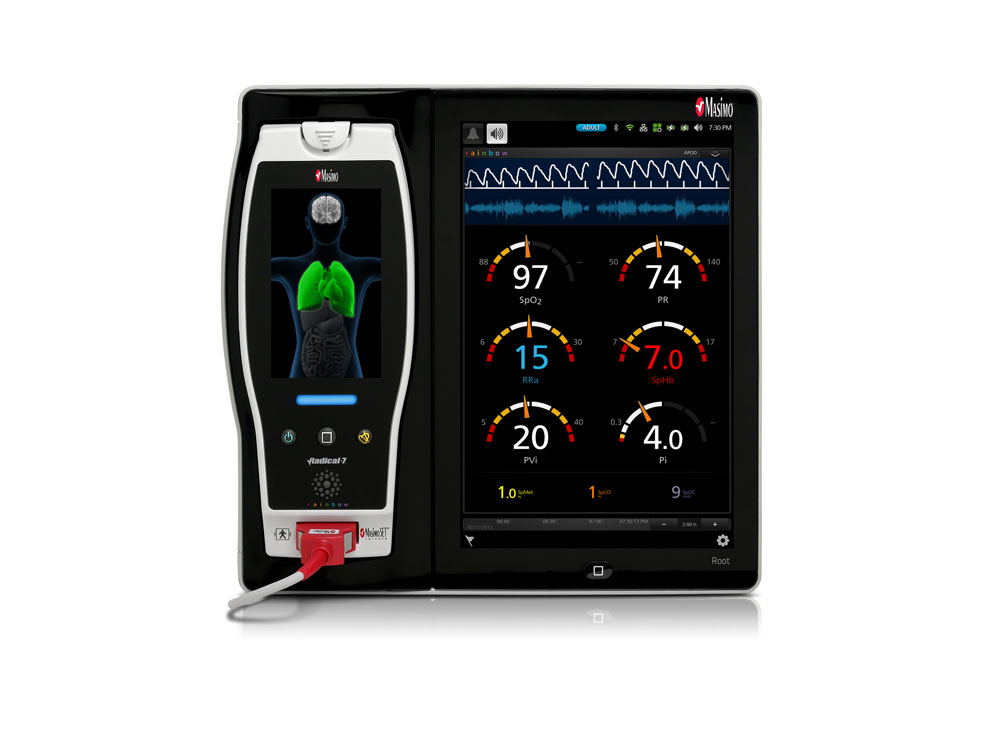

Masimo - Root Analog 8-up US

View pertinent data at a glance in Analog View with gauges that display alarming, caution, and normal ranges to indicate the current status of the measurement

Masimo - Root Trend View Digital 8-up

Review up to 96 hours of parametric data in Trend View

Masimo - Root with Radical-7 displaying rainbow

Display rainbow SET measurements on a docked Radical-7, allowing data from MOC-9 modules to be more easily viewed on the main Root display

Alarm Status Visualizer

Provides a three-dimensional, anatomical image that associates device measurements with alarm status

Adaptable to Changing Monitoring Needs

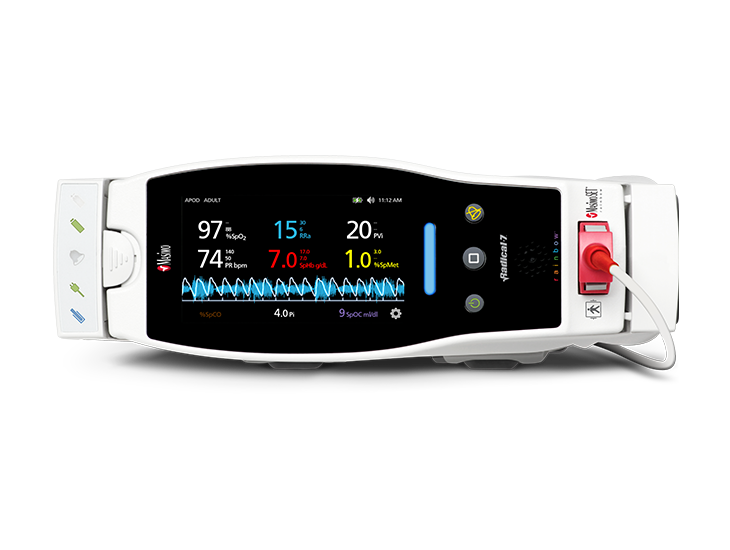

Radical-7 easily undocks from Root to seamlessly transition to standalone bedside, handheld, or transport monitoring

Configurations with Radical-7

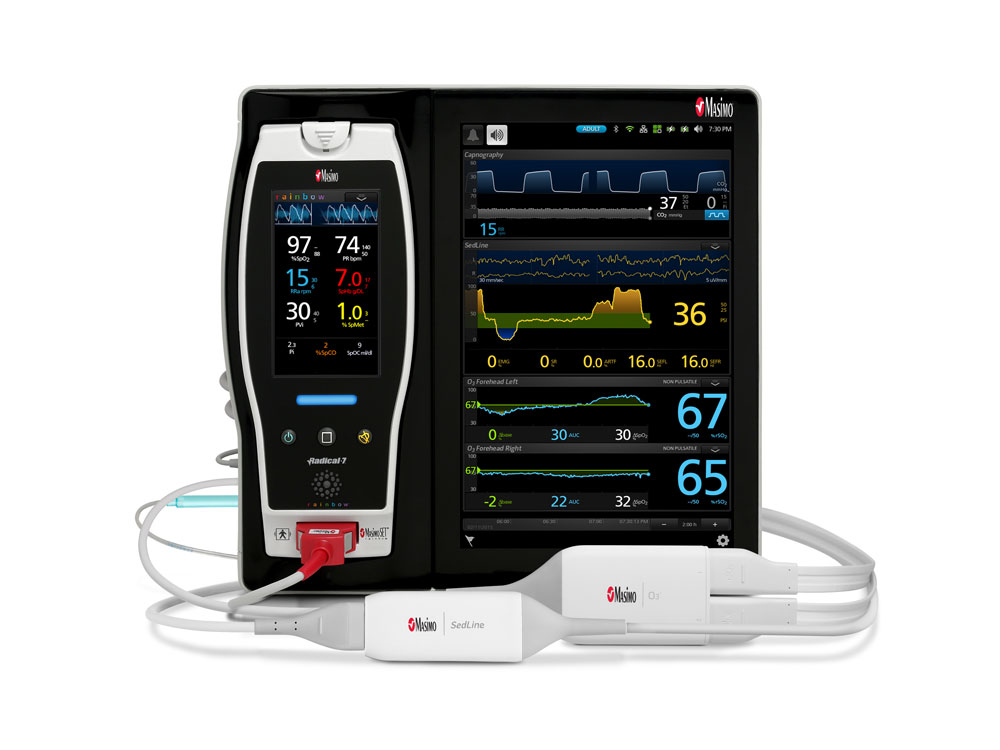

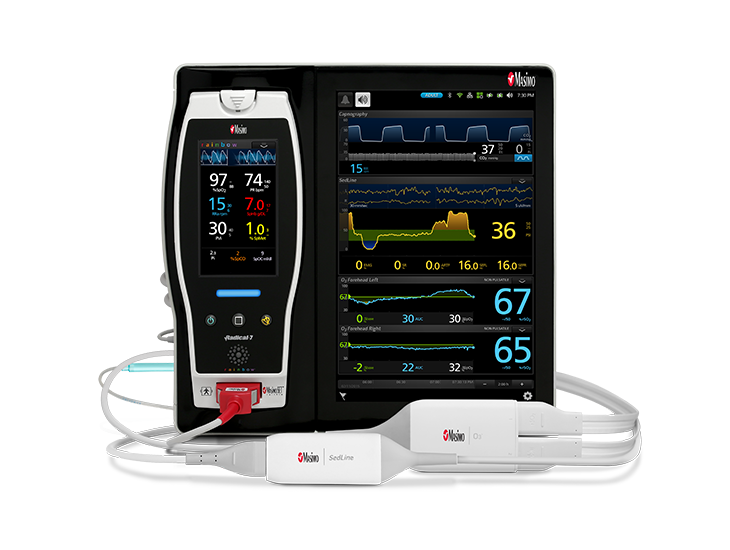

Explore additional monitoring options on the Root platform or the standalone Radical-7 Pulse CO-Oximeter.

Caution: Federal (USA) law restricts this device to sale by or on the order of a physician. See instructions for use for full prescribing information, including indications, contraindications, warnings, and precautions.
