Industry-leading noninvasive monitoring solutions
Veterinary practice guidelines recommend the continuous monitoring and recording of oxygenation and ventilation to adequately manage anesthetized animal patients, and note that pulse oximetry is valuable in detecting life-threatening complications.1 Proper patient management during recovery from surgery and anesthesia is particularly critical for animals: over 60% of all post-surgical animal deaths occur in the postoperative setting; more than 70% of these deaths are related to cardiovascular or respiratory problems.2
Masimo offers a wide range of monitoring solutions, building on the same industry-leading Masimo SET® pulse oximetry used on more than 100 million human patients a year.3 From portable capnography devices to bedside pulse oximeters and a variety of advanced monitoring solutions, Masimo helps deliver high-quality care to patients across the continuum of care.
Y-I Clip Sensor with Masimo SET® Pulse Oximetry
Masimo’s breakthrough Signal Extraction Technology® (SET®) overcomes the limitations of conventional pulse oximetry with the ability to measure-through motion and low perfusion. Masimo SET® supports clinicians in providing a high level of care during anesthesia-induced surgical procedures and postoperative recovery, when their patients are often most at risk. SET® is available on an assortment of reusable and single-patient-use sensors appropriate for multiple monitoring sites, including the Y-I and TC-I clip sensors, which are shaped to accommodate placement in a variety of locations, and the TFA-1™ and TF-I® transflectance sensors, which are designed to reliably monitor patients with low peripheral perfusion.
Masimo offers a complete portfolio of capnography and gas monitoring solutions, both sidestream and mainstream, to meet the challenges of ventilation and gas monitoring across care areas. Solutions range from external "plug in and measure" gas analyzers to bedside and handheld devices featuring NomoLine technology. NomoLine’s versatility allows it to accurately monitor patients with low tidal volumes and high breath rates. In addition, NomoLine technology needs only minimal warm-up time and performs automatic calibration at startup and once every 24 hours, for convenient use and easy maintenance.
Rad-97™ with NomoLine Capnography and SET® Pulse Oximetry
Rad-97 with NomoLine Capnography

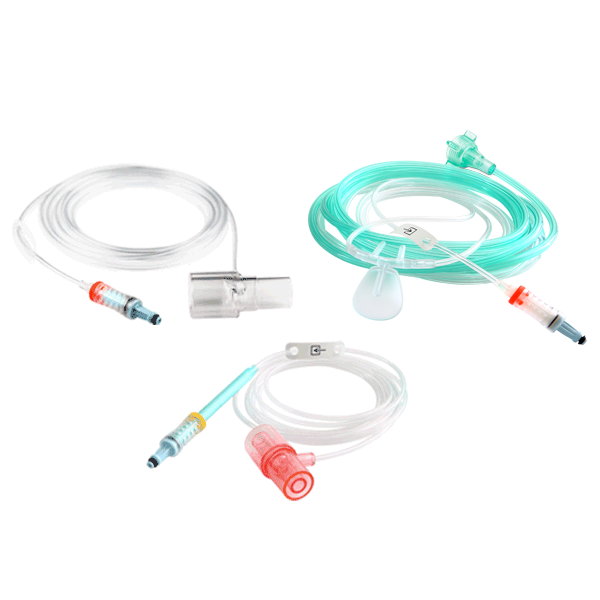

NomoLine sampling lines eliminate common problems associated with conventional sidestream gas analysis. Incorporating a unique, patented polymer, NomoLine allows water in the sampling line to evaporate into the surrounding air, while leaving oxygen and carbon dioxide unaffected, eliminating the need for a water trap and issues related to their handling.

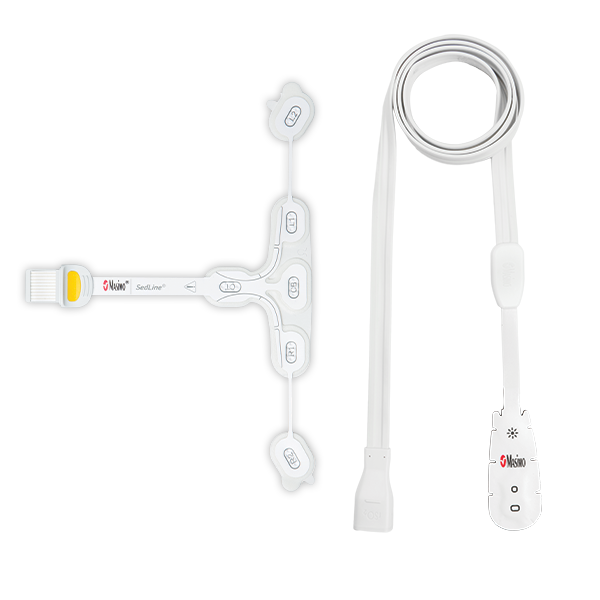

SedLine and O3 Regional Oximetry
Brain function monitoring provides real-time insight into a patient's depth of anesthesia. To facilitate timely assessment of patient status, SedLine provides the Patient State Index (PSi), a processed EEG parameter that provides information about a patient’s response to anesthesia. In addition, O3 regional oximetry may help clinicians monitor cerebral oxygenation in situations in which peripheral pulse oximetry alone may not be fully indicative of the oxygen in the brain. Both SedLine and O3 are available for simultaneous use on the Root® platform.

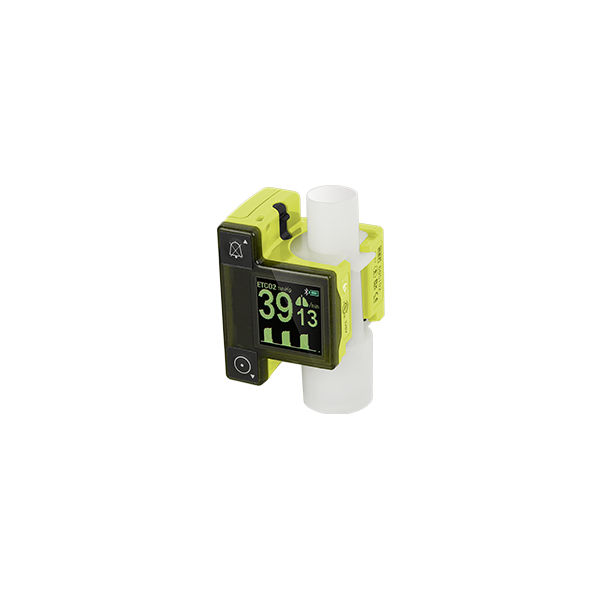

The American College of Veterinary Anesthesia and Analgesia (ACVAA) and American Animal Hospital Association (AAHA) guidelines recommend the use of capnography to monitor the ventilation status of patients under anesthesia.1,4 The EMMA capnograph is Masimo's most cost-effective method for monitoring end-tidal CO2 and respiratory rate during anesthesia, postoperative recovery, and respiratory care. EMMA is portable, durable, water resistant, lightweight, and fits easily into a breathing circuit.

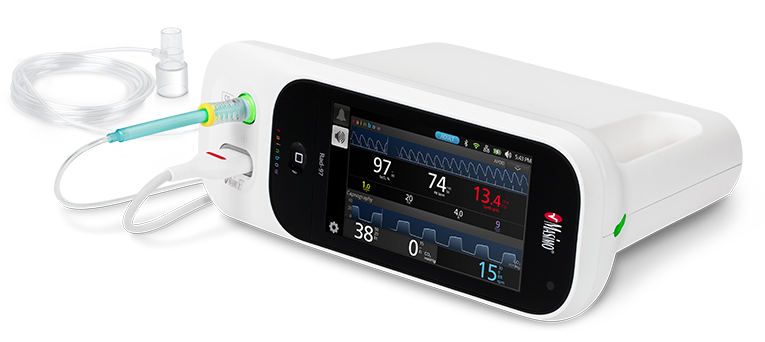

Rad-97 with NomoLine capnography features Masimo SET® pulse oximetry and an integrated sidestream gas analyzer — meeting continuous oxygenation and ventilation monitoring needs in a single, compact, lightweight device. On a customizable, multi-touch display, Rad-97 provides continuous end-tidal carbon dioxide (EtCO2) monitoring with numeric, trend, and waveform viewing options, as well as fractional concentration of inspired carbon dioxide (FiCO2) and respiration rate (RR). Rad-97 can be upgraded to also monitor Masimo rainbow SET™ parameters such as noninvasive and continuous hemoglobin (SpHb®) and methemoglobin (SpMet®).
Rad-57 is an easy-to-use, handheld device with the ability to measure key physiologic rainbow® parameters such as SpHb and SpMet, in addition to SET® pulse oximetry, with results in just a few simple steps and the ability to store up to 72 hours of trend data. Rugged and lightweight, Rad-57 provides continuous measurements in various use environments.

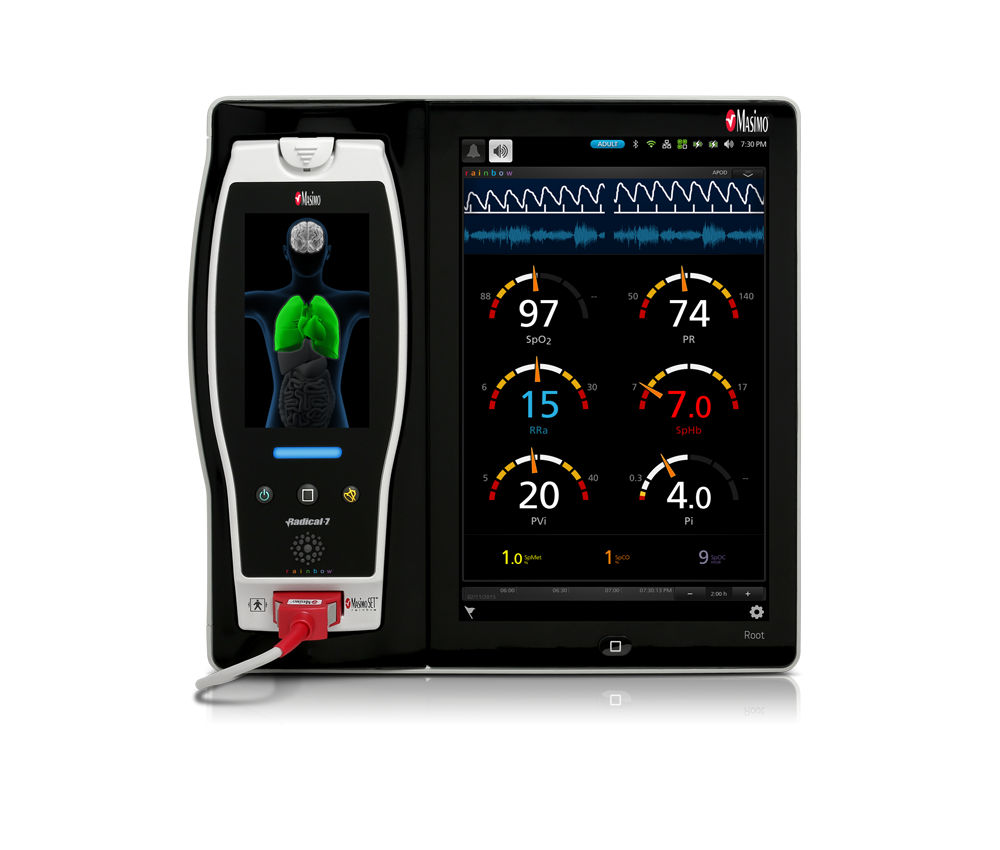

Root is a powerful, versatile hub that integrates an array of technologies, devices, and systems to provide multimodal monitoring in a single, clinician-centric platform, with the flexibility to choose the best combination of available solutions. Root’s plug-and-play expansion capabilities allow clinicians to bring together advanced rainbow SET Pulse CO-Oximetry, SedLine brain function monitoring, O3 regional oximetry, NomoLine capnography, and noninvasive blood pressure and temperature measurements on an easy-to-interpret, customizable display, empowering clinicians with more information for making patient assessments.
Regional Oxygen Saturation
Patient State Index
The American College of Veterinary Anesthesiologists (ACVA). "Recommendations for monitoring anesthetized veterinary patients". ACVA Monitoring Guidelines Update, 2009.
Hall et al. Veterinary Anaesthesia, 10th Edition. London, England. Saunders;2001:51-53.
Estimate: Masimo data on file.
ACVA Monitoring Guidelines Update, 2009. http://www.acvaa.org/
Caution: Federal (USA) law restricts this device to sale by or on the order of a physician. See instructions for use for full prescribing information, including indications, contraindications, warnings, and precautions.
