PULSE OXIMETRY SENSOR APPLICATION
Reference Guide
Sensor Style: RD SET® Wrap-around
Patient Population: Neonatal
Application Site: Hand
RD SET® Neo

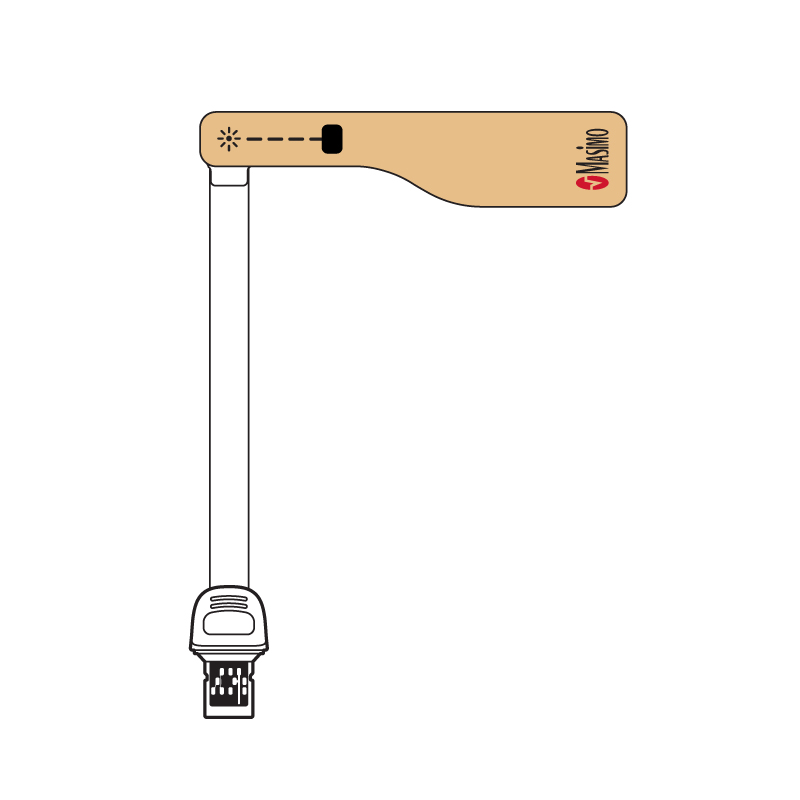

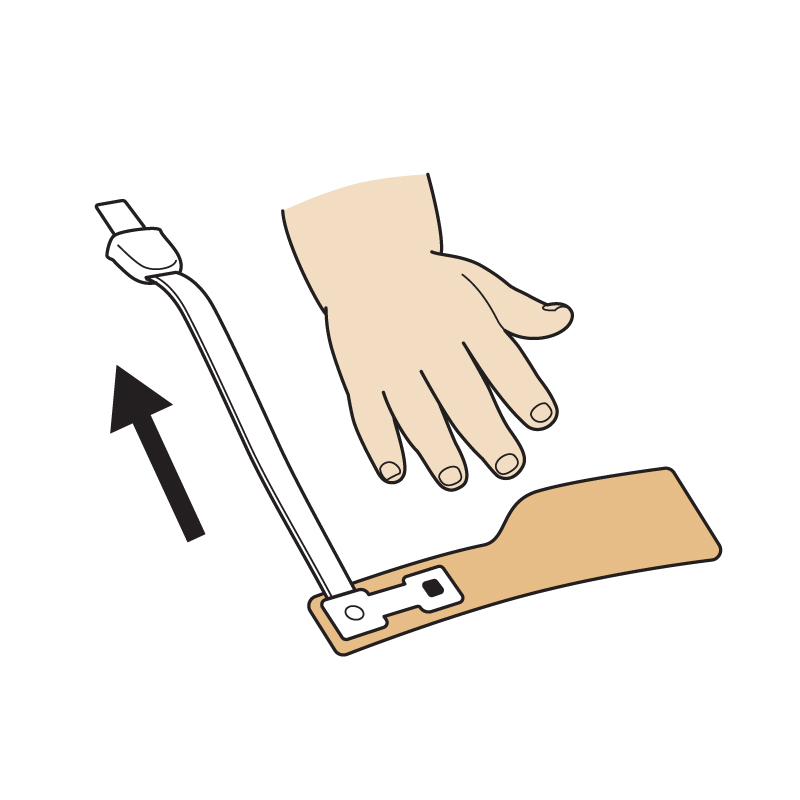

Take sensor first
Aim towards heart

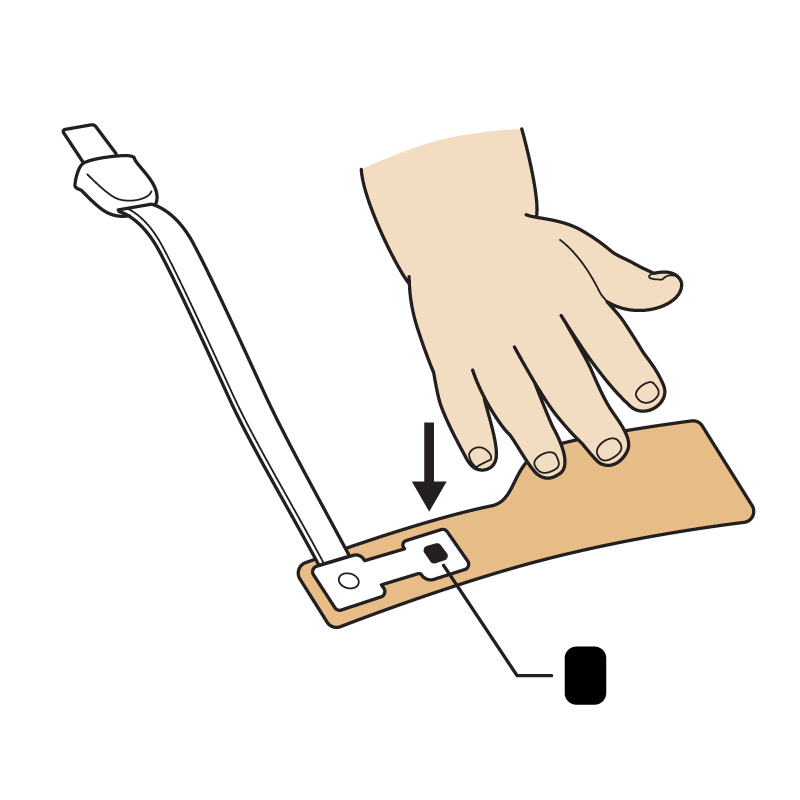

Block the box

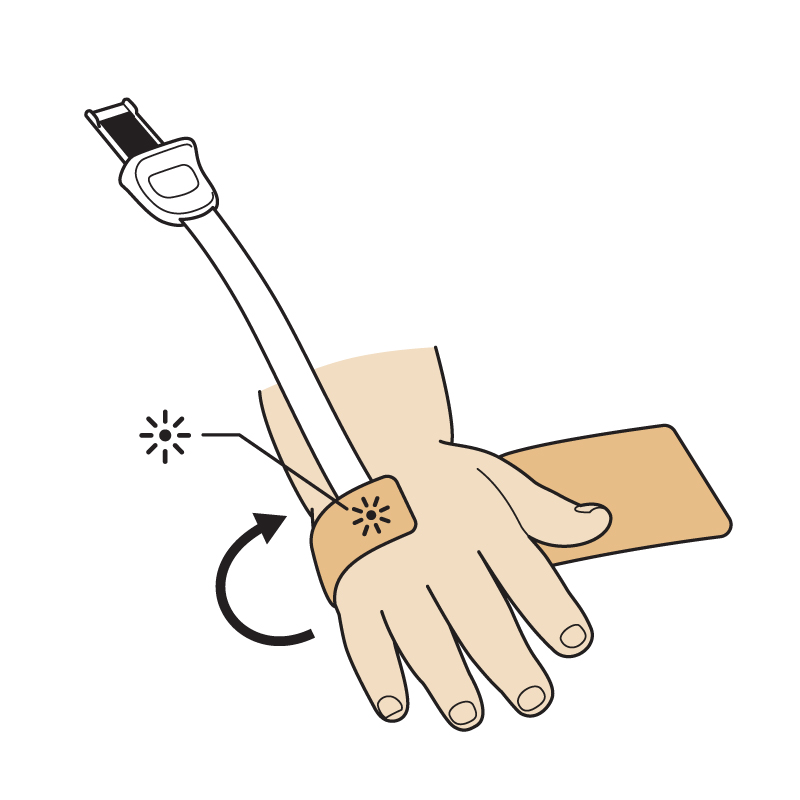

Star to the sky

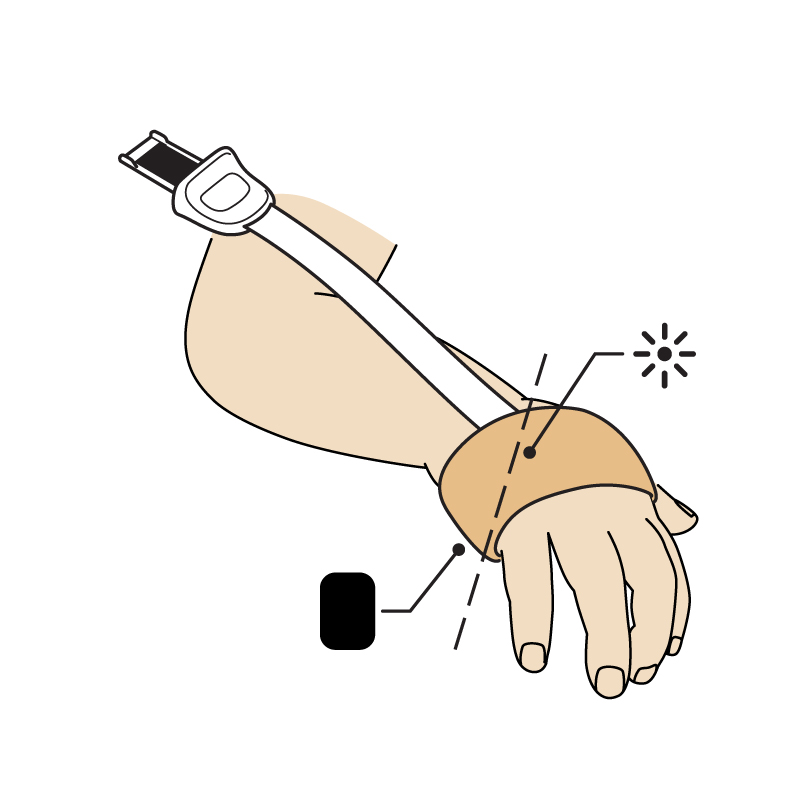

Unite the light

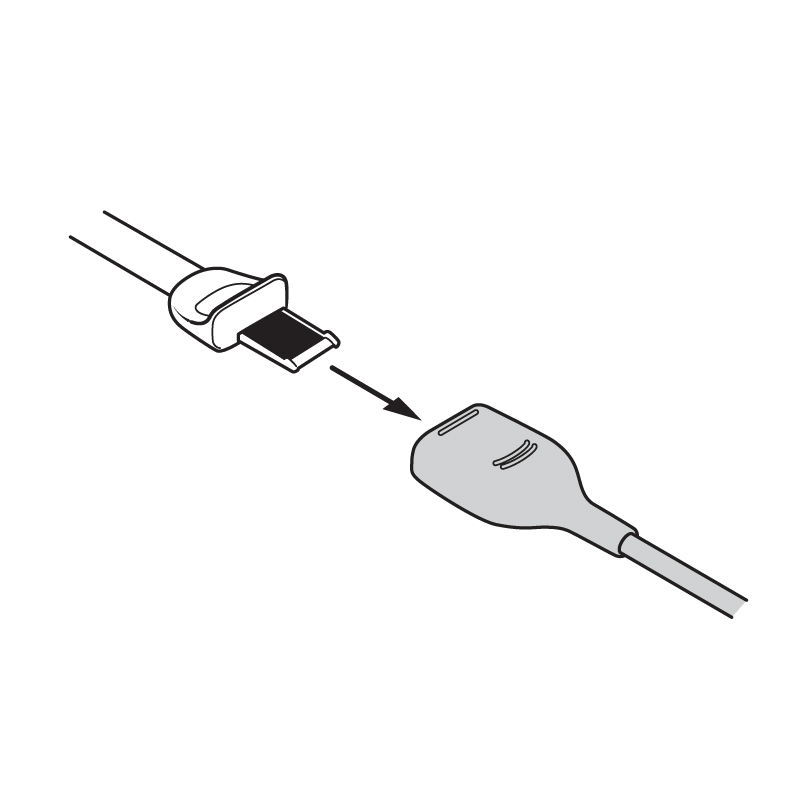

Plug it in last
Note: The placement of the star and box
can be switched when applying to the opposite hand.
PLCO-006331/PLM-14274A-0323
